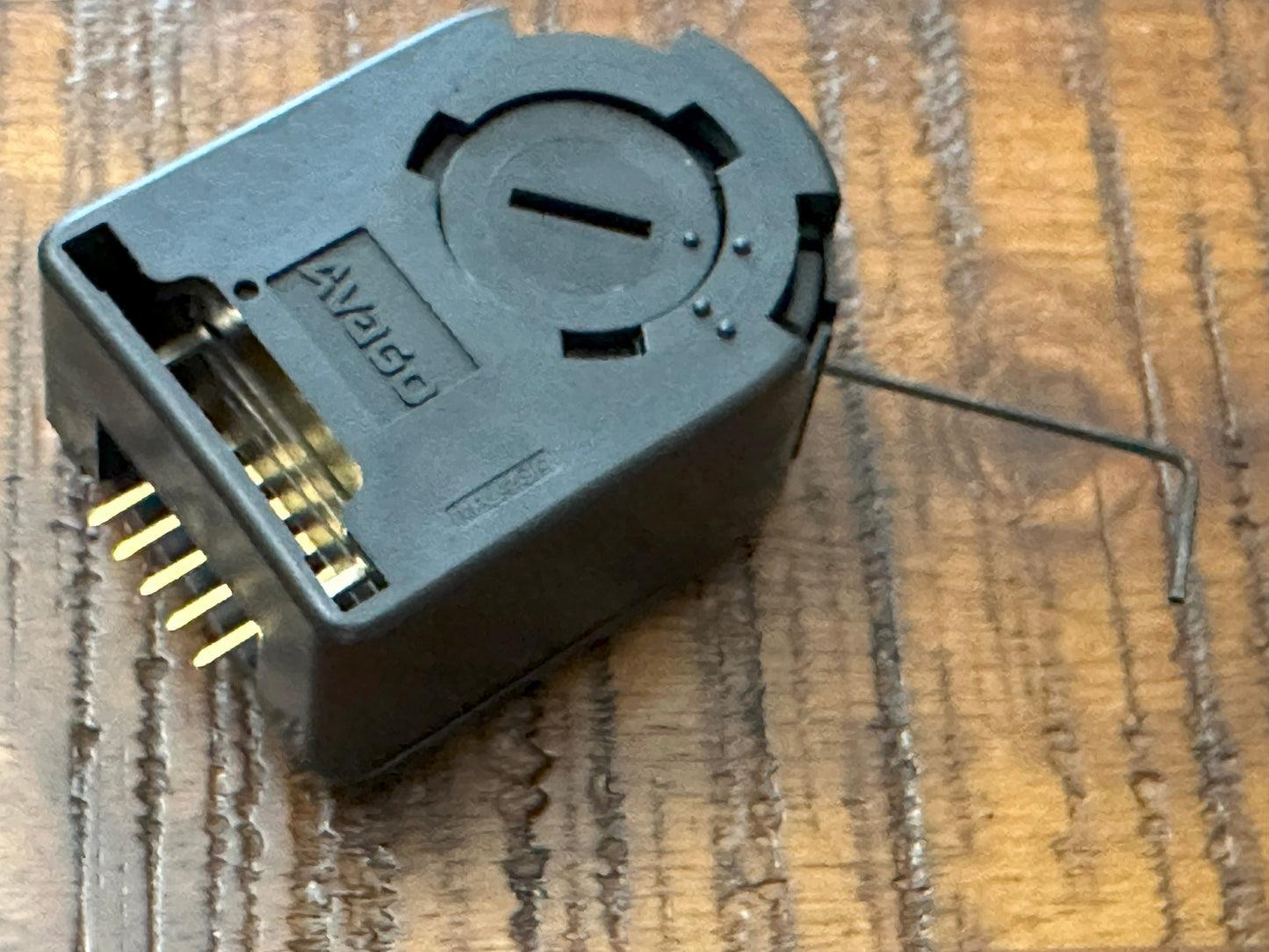

Optical Encoder (X&Y)

500 CPR optical encoder with index pulse. There is an encoder mounted on both the X and Y motors that report their position back to the control box. Hex wrench for installation is included. Signs of failure include not keeping track of the position accurately or at all.

REPLACEMENT REQUIRES A SKILLED MECHANIC. NO WARRANTY
Instructions will be emailed when your order is shipped. Please familiarize yourself with them before attempting to replace. The video manual contains more information in Chapter 8 as well. If you are uncomfortable about your skill, consider replacing the entire motor which will come with a new encoder already installed.
